FinderPro-X mounted type Anti-Reconnaissance and Anti-Sniper System

Product Specification for FinderPro-X mounted type Anti-Reconnaissance and Anti-Sniper System

1、Overview

The FinderPro-X mounted type Anti-Reconnaissance and Anti-Sniper System (hereinafter referred to as "the Product") is an electro-optical defense system developed to counter threats from optical and electro-optical observation and aiming devices. Adopting active laser detection technology, it identifies various optical/electro-optical equipment operating in the surrounding area, including telescopes, gun sights, low-light night vision devices, rangefinders, video cameras and other optoelectronic observation devices. While performing high-speed scanning, the system outputs high-definition imaging and accurate azimuth data of suspected threat targets, and is capable of implementing laser dazzling interference against targets when required.

The Product supports fixed and mobile deployment. It is highly applicable to sensitive areas including military airfields, ports and missile positions for countering espionage behaviors such as covert photography and intelligence theft. Meanwhile, it can defend against peeping and sniper threats at office premises and residences of key personnel.

The Product is optional with functional modules such as laser dazzling jamming, laser warning, gunshot detection and laser damage.

2、Product Composition

According to different application scenarios, this product is divided into mobile-mounted type and fix-mounted type.

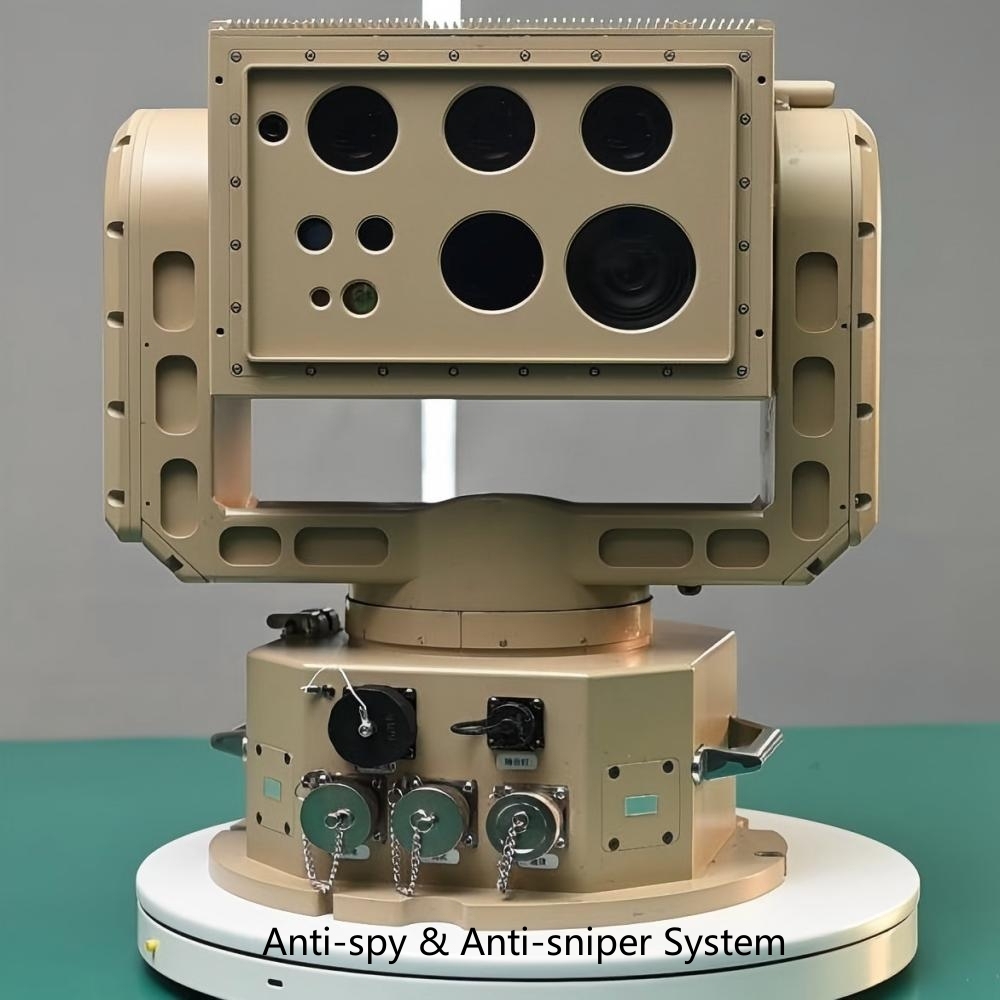

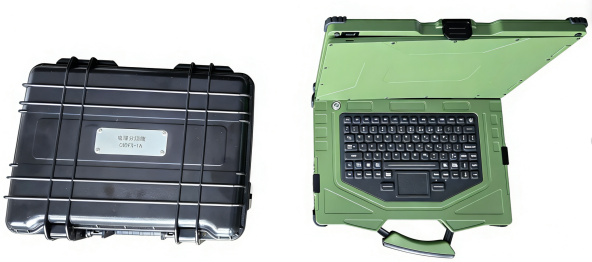

The mobile-mounted type system includes a host, a tripod, a power box, a ruggedized computer, and other components.

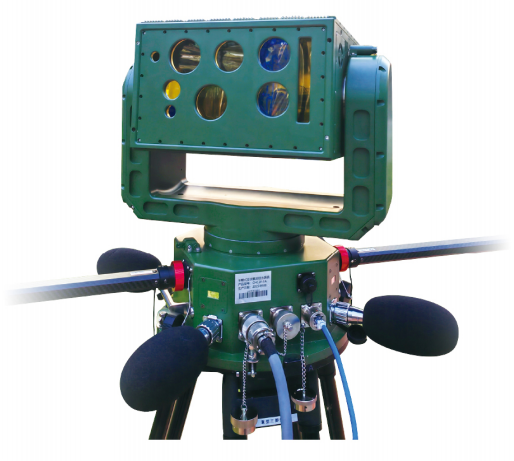

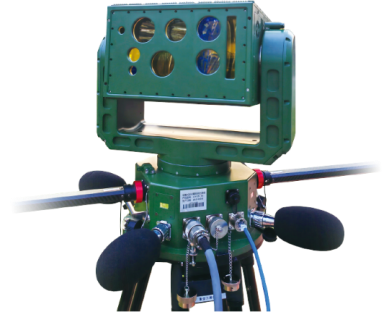

Figure 1 Composition diagram of mobile mounted type product

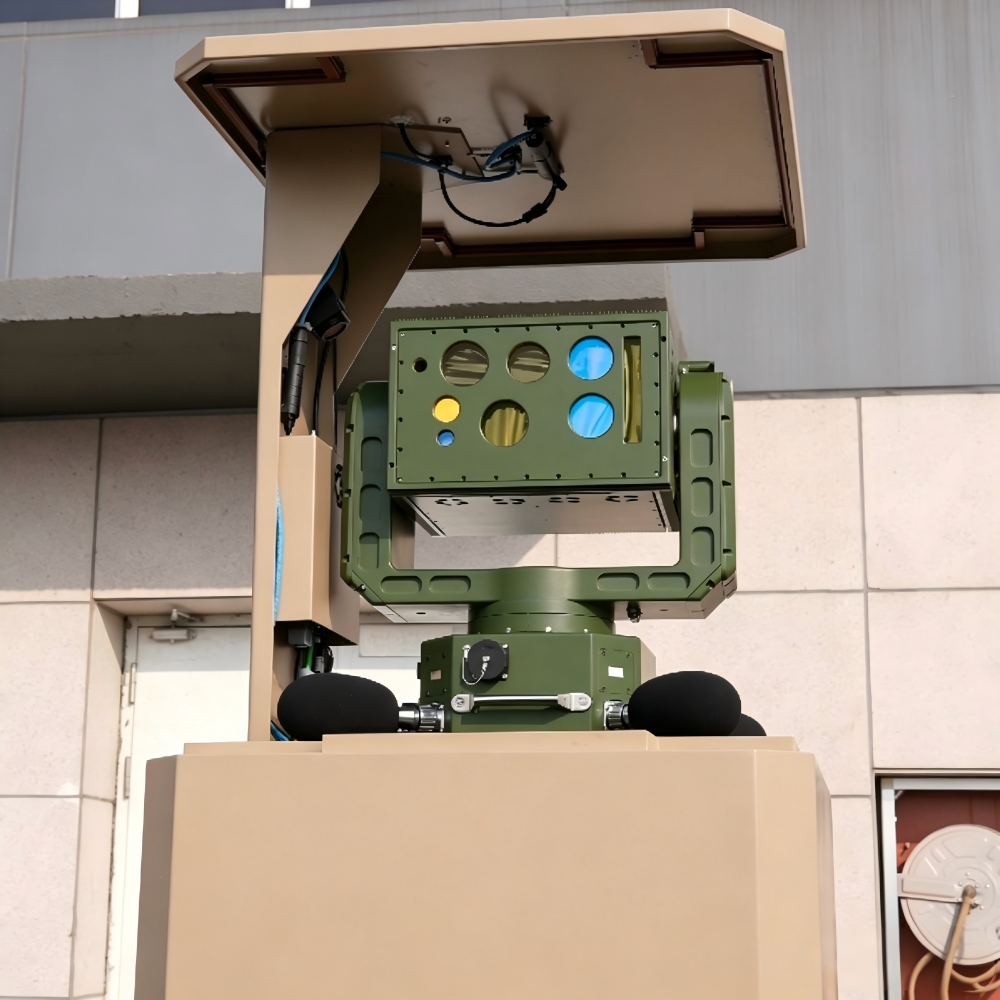

The fix-mounted type system comprises the main unit, protective cover, and fixed distribution box, among other components.

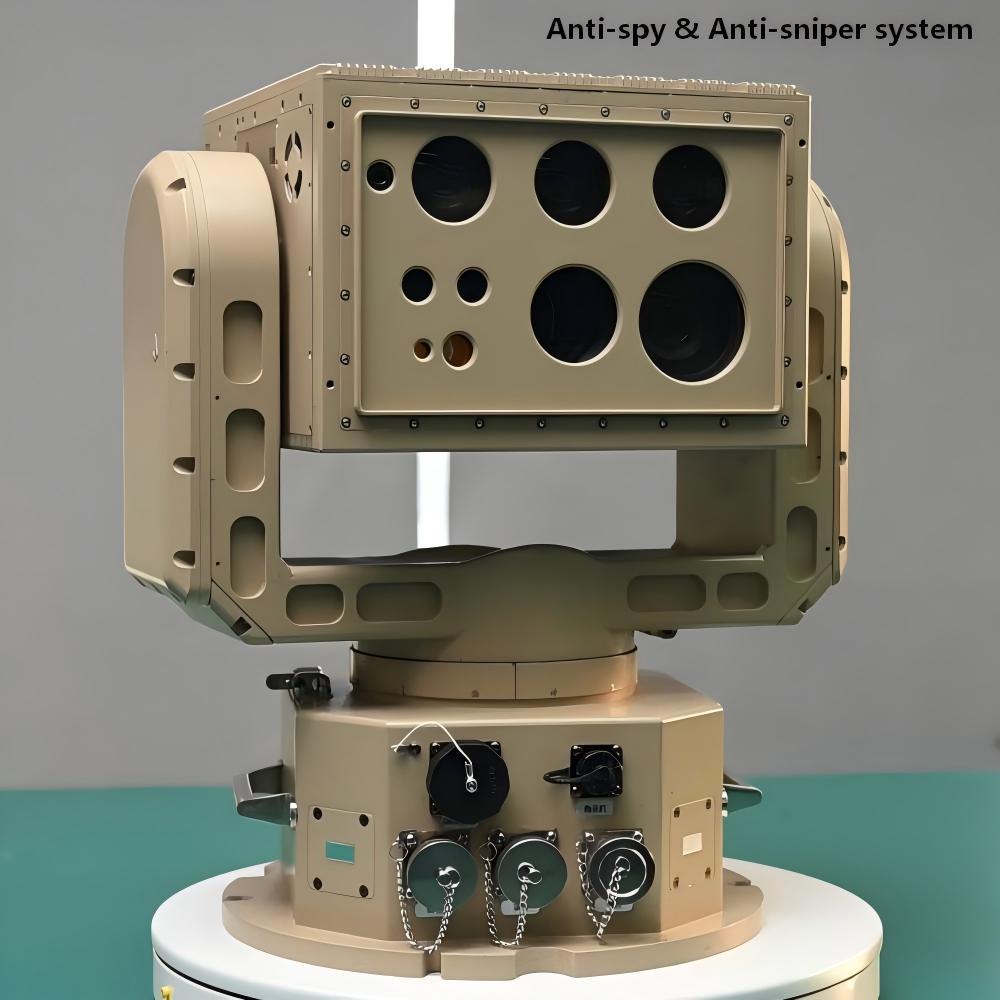

Figure 2 Composition diagram of fixed mounted type product

3、Main functions
a)High-speed target detection:Utilizing a brand-new technical system, it achieves second-level search and positioning for typical protection areas with a 360° azimuth and 45° The search speed is the fastest among similar products, being over an order of magnitude faster than its counterparts.
b)High accuracy:By utilizing advanced image processing technology, while ensuring a high detection probability for real threat targets, various natural ground objects and man-made interference in urban environments (such as car headlights, street lights, and glass) are accurately eliminated, to achieve a low false alarm rate.
c)High integration:The system integrates high-speed search, servo imaging, and laser jamming functions in a small size and light weight, and can be optionally equipped with laser warning, gunfire detection, and laser damage functions.
d)Fully automatic detection and tracking:Based on AI algorithms, it automatically recognizes optical sights, then enables unattended early warning.
e)Electronic map and situation display:Display the threat location, distance, and ballistic trajectory prediction in real-time on the electronic map.
f)Data Link and Networking:the product supports networking of multiple devices to achieve seamless coverage of the protection area; and it can transmit the data back to the command center; and supports joint operation with other systems.
g)Recording and evidence collection:Conduct video recording throughout the entire process, capturing high-definition images before and after the threat occurs, serving as a basis for post-event analysis.
h)Rapid deployment:For mobile mounted type products, the deployment efficiency is high, and two people can achieve dismantling or setup within 5 minutes.
i)Rapid handling:For high-risk targets, green light jamming can be achieved in seconds to suppress their observation and targeting of our side, and dazzling effects can also be achieved to make their detectors inoperative.
4、Main technical indicators
a)Search range：360°(azimuth)，-20~+70°(pitch)；
b)Search speed：360°/s(Azimuth speed, elevation field of view angle 8°)；
c)Detecting distance：≥2km(For equipment with a diameter of not less than 50mm)；
d)Detecting possibility：≥95%；
e)False alarm rate：≤10%；
f)Switching time from search to interference：≤3s；
g)Target location accuracy: better than 20 meters (for a target at a distance of 1km, combining latitude, longitude and altitude);
h)Laser ranging range：100m~3000m；
i)Working temperature range：-20℃～+55℃（Low temperature -40℃ products are available, but customization is required）；
j)Main unit weight：29kg；
k)Main unit dimensions：380mm×280mm×450mm。
5、Interface

Power supply:mains electricityAC220V，power requirement 2kW；

Communication ：Fiber optic or Gigabit dedicated network line

6、Application scenarios

Mobile-mounted type application

It is suitable for situations where rapid setup is required, especially for anti-sniper protection at rallies attended by important personnel, and for anti-reconnaissance and anti-sniper guard duties at temporary military encampments in the wilderness.

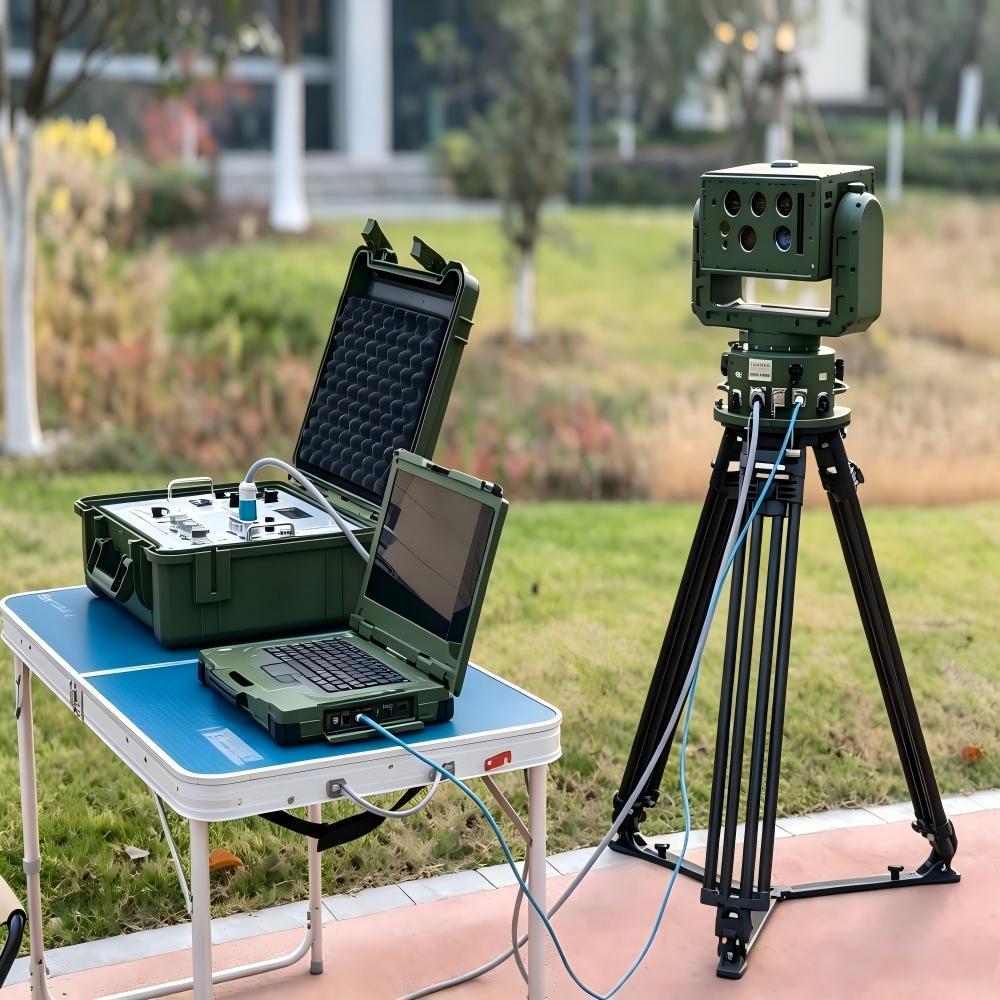

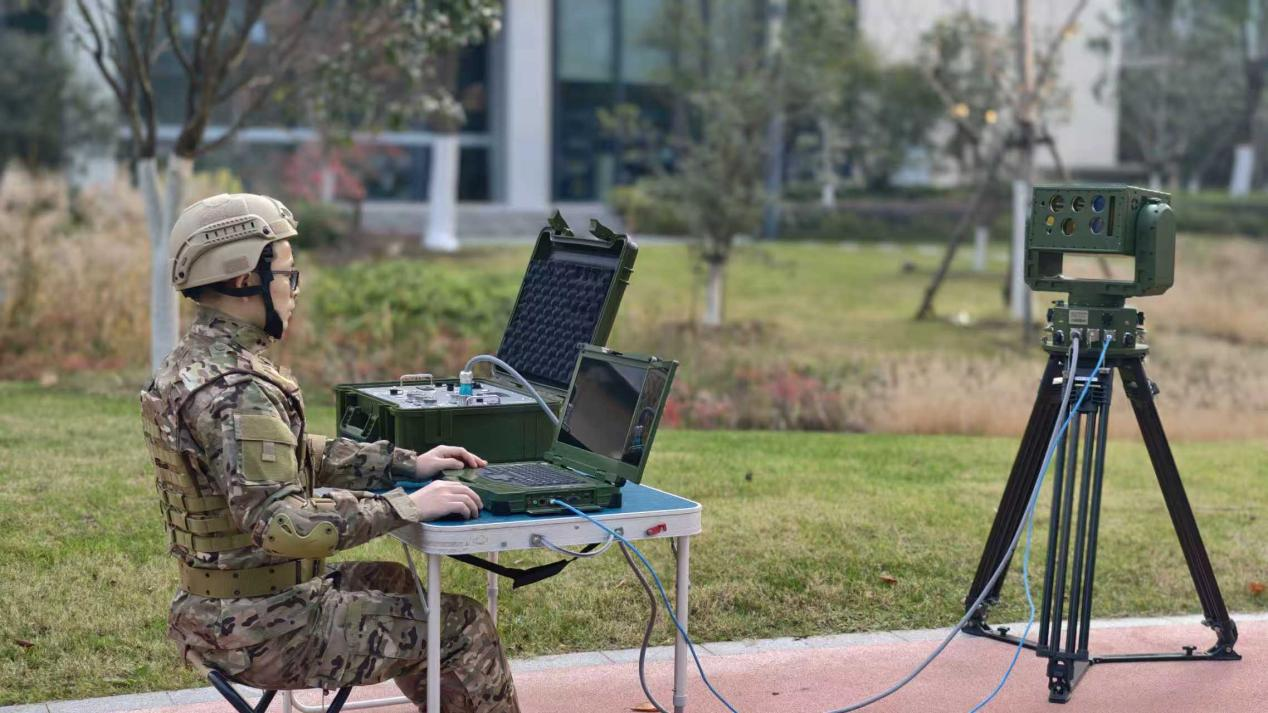

Figure 3 Scenario diagram of mobile-mounted type

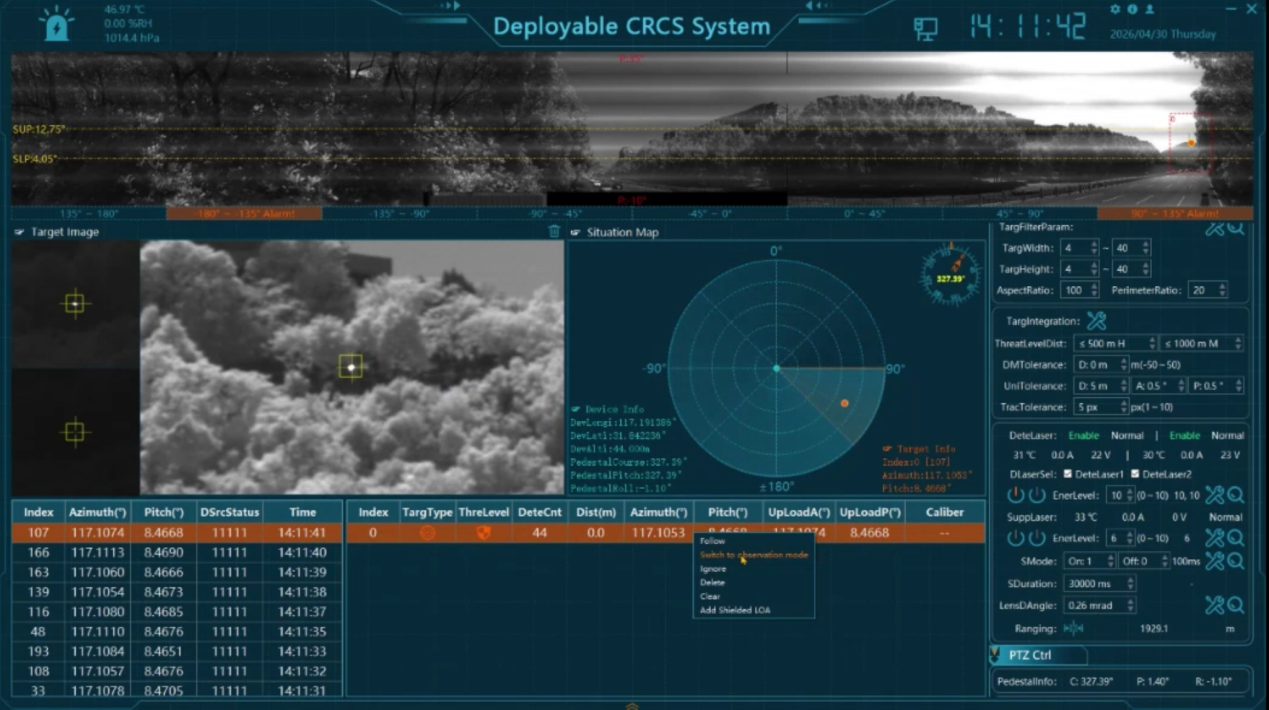

Figure 4 Operating interface diagram of the mounted type anti-reconnaissance and anti-sniper system

Fix-mounted type application



It is suitable for the protection of fixed facilities and can be mounted near highly sensitive facilities such as military airports, ports, and missile positions to effectively prevent espionage activities such as secret photography and theft. Alternatively, it can be fixed near the residences of important personnel to counter threats from peeping and sniper attacks.

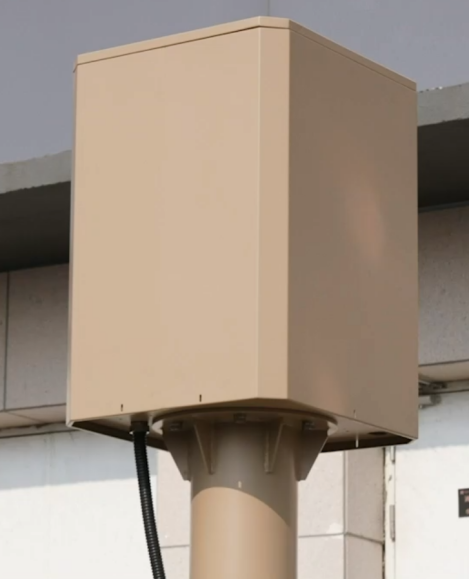

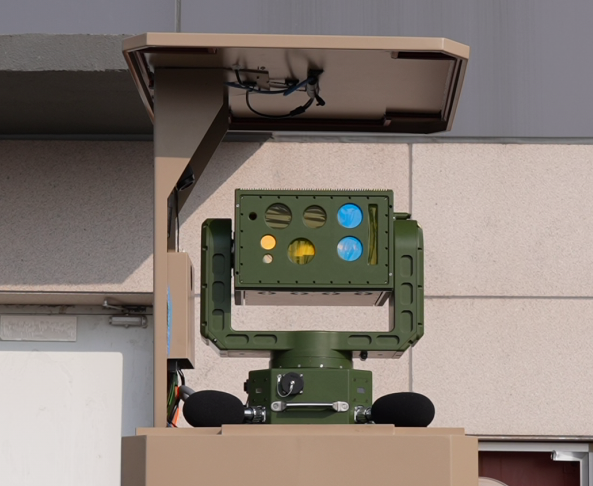

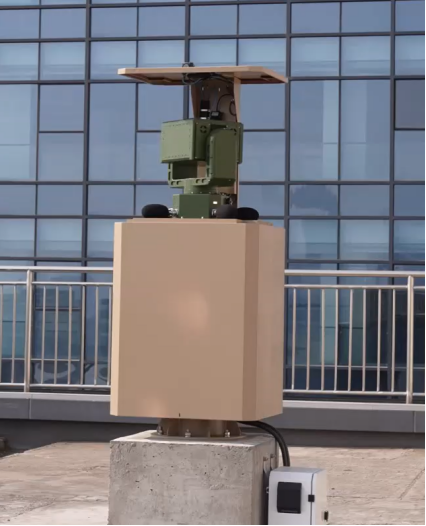

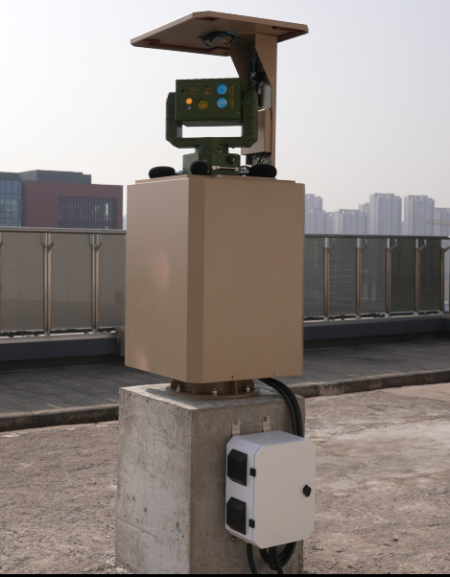

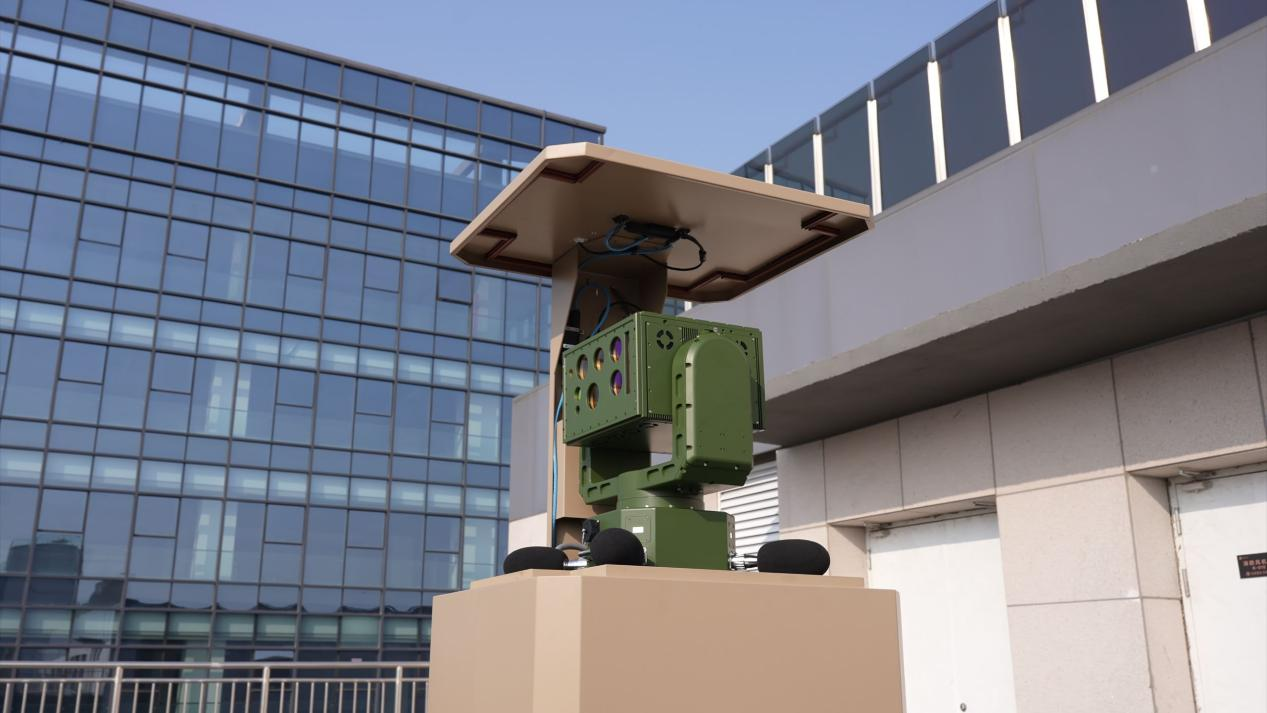

Figure 5 Fix-mounted type application scenario

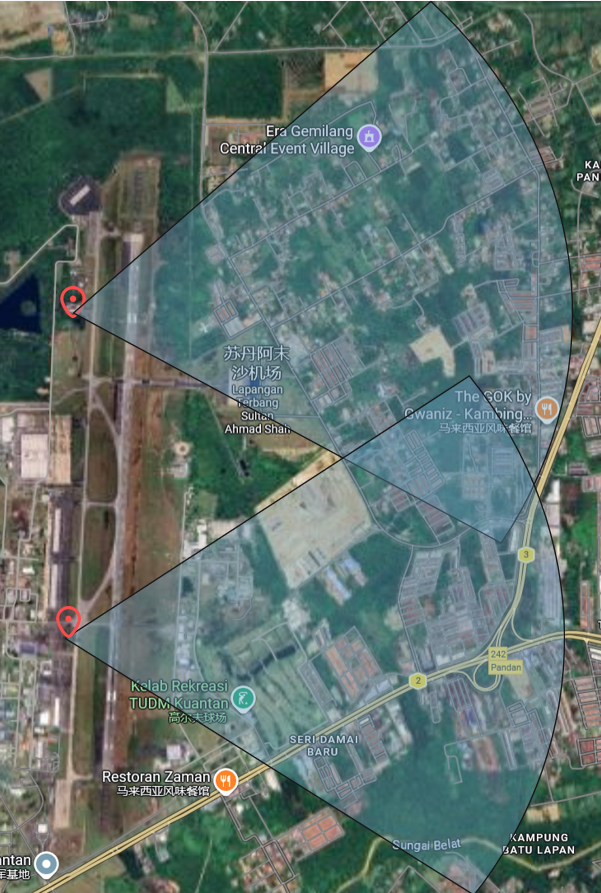

Figure 6 Application scenario diagram of fix-mounted at an airport
